Learning Git

Where are We?

What do we know?

What should we know?

On Learning…

The more you learn, the less you know.

You will always be learning…

Do You Know Python?

  • Basic Python syntax
  • Creating functions and classes
  • How to make objects from classes
  • Import and use modules

What Else?

  • Automated code testing
  • Create Python projects
    and virtual environments
  • Basic Git skills
  • Github skills, including forking and creating pull requests

Git

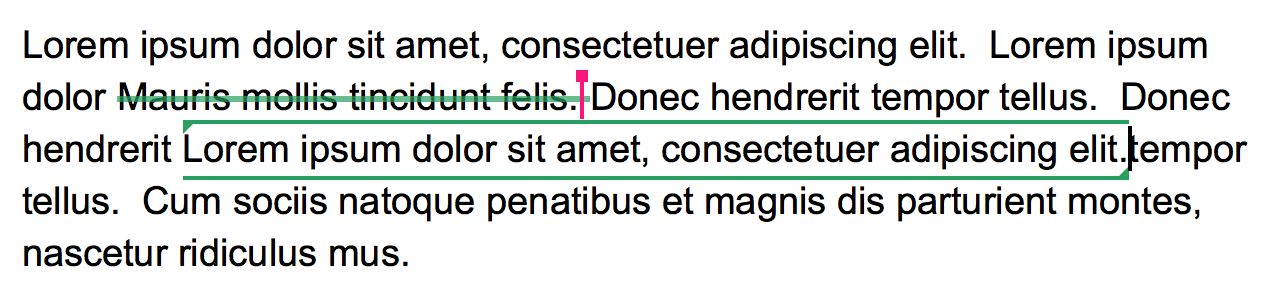

Versions

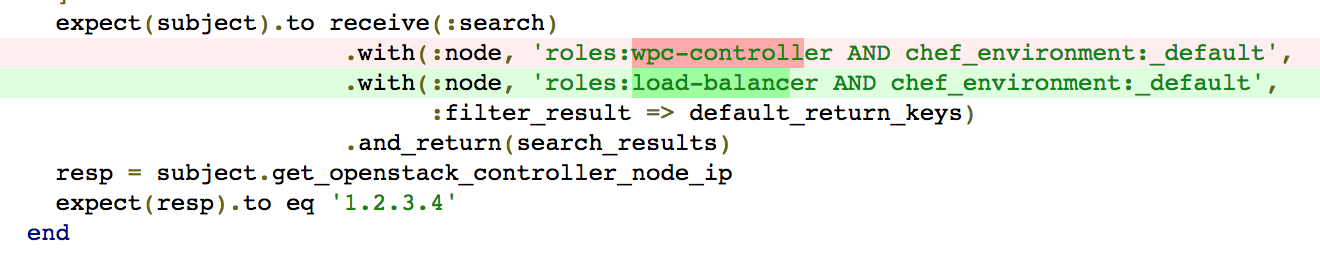

Source Code Diff


Code is in multiple Files


Treat Code Files as One

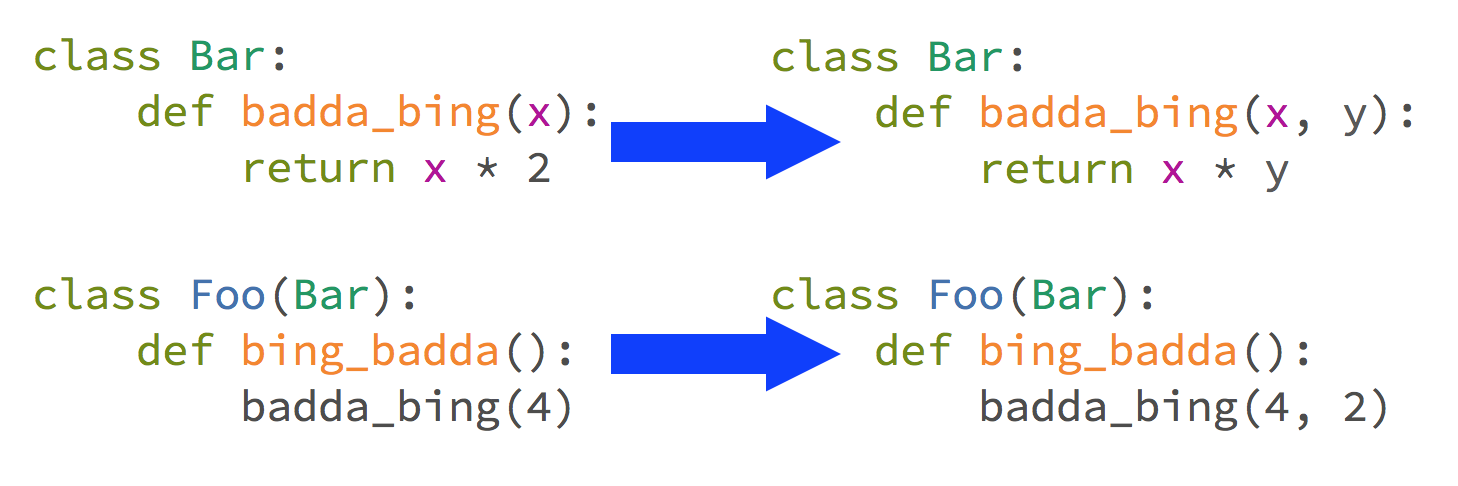

Remember Each Code Version


Version Control System

Snapshot (copy) a version of all files in your project

What about viewing other versions of your project?

This is a version control system (VCS)

Story Time

Pretend we start a project.


Label first snapshot A.

Story Time, B

We change our code.


Now we have version B.

We send it to our robot…

Story Time, C

And work on another change.


Which we call, C.

Story Time, But…

Find a bug on robot, based on B.


We can jump backwards in time to that code!

Story Time, D

We fix the bug, and send it to robot.


We call this version D (based on B).

Story Time, E

Ugh. Another bug on robot.


This fix is version E.

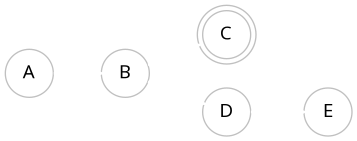

Story Time, Back to the Future

We jump forward to where we were working…


We can get any version, any time.

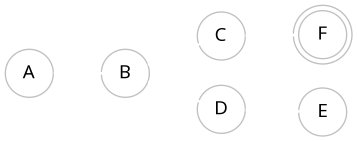

Story Time, F

We finish our new feature.


Which we label, F.

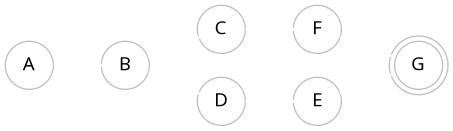

Story Time, G

But we want our bug fixes!


We merge E with our current code, F.

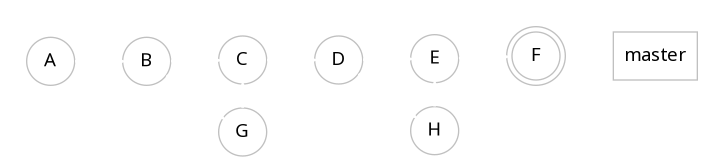

Master Branch

The primary line of changes: master

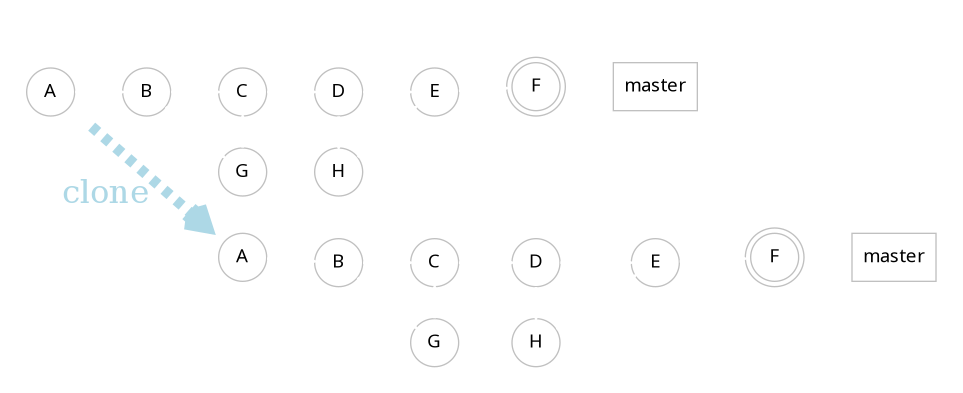

Cloning

Github hosts our code. Use clone to make a copy to your system.


Notice that you get a complete copy… including the history.

Committing

Making a commit, I, to your copy


Now your version and Github’s are out of sync

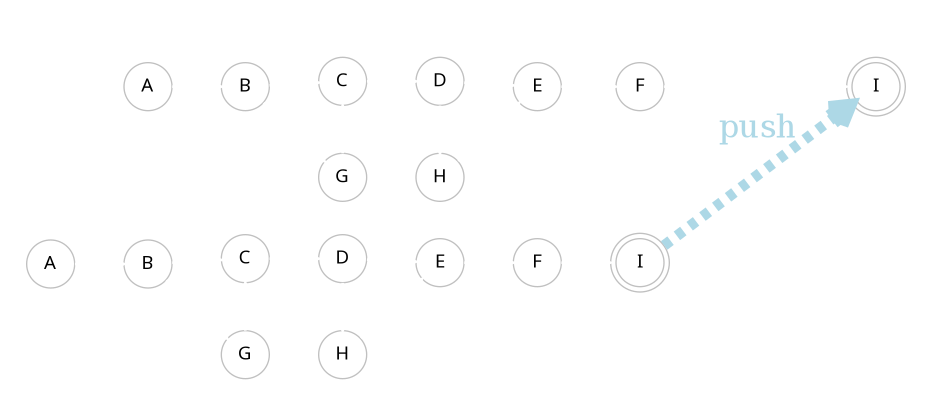

Pushing

Synchronize your code with our code using push:


What if another team member push a their new version?

Learning Git

Let’s Practice

Let’s practice working with Git.

Create a Project

  • Create a folder to hold your new project
  • Create at least one file
  • Create more folders and file if you want

Now:

  • Start the Terminal program
  • Jump to your folder using cd

Initialize a Project

Make your project Git-able with init:

     $ git init
     Initialized empty Git repository in /home/howard/Work/robotics/experiment/.git/

Does little except for create a directory, .git

Your world of versions are stored there.
We’ll look more at it later.

First Commit

What files should be added to snapshot?

   git add README.md
   git add Pipfile

To create a snapshot of all file versions, type:

   git commit --message="A- Initial start of my new project"

Notice the double dashes:

     [master (root-commit) 1d8835d] A- Initial start of my new project
      2 files changed, 15 insertions(+)
      create mode 100644 Pipfile
      create mode 100644 README.md

Looking at Git

Currently, we have one commit: git-history-a.png

How do we know? Type:

   git log

Shows all commits in your history. Let’s make this long.

Second Commit

Use your editor to change some files.

Repeat the process to specify files:

   git add README.md

And commit them:

   git commit --message="B- Updated the README explaining experiment"

Now, we have: git-history-b.png

Third Commit

Pretend we sent B to the robot. Let’s make a new commit.

Edit one or more of your files, and:

   git add README.md Pipfile

And commit them:

   git commit --message="C- New robot interface needs new module"

We now have: git-history-c.png

Fix a Bug?

How are you doing? Look at the history:

     git log

Let’s go back in time:

     git checkout 690871d # Beginning of commit ID

Only need the first 7 characters. Now back to B: git-history-b2.png

Did you do it? Type:

     git log

You didn’t loose anything!

To see full history of changes, type:

   git log --all

To return to where you were, use C’s ID:

     git checkout f4e622d

We are back to C: git-history-c.png

Look at the full history again:

     git log

Git it?

Let’s Talk IDs

Each commit has a long (but unique) ID.
Only have to type the first 7 characters…

Annoying. Try this:

   $ git checkout 'HEAD^1'
   Previous HEAD position was f4e622d... C- New robot interface needs new module
   HEAD is now at 690871d... B- Updated the README explaining experiment

That says, go back one.

Note: You can’t do HEAD+1 to go forward. Git only remembers where a change came from not where it is going.

Change the Past

Re-edit one or more of your files, and:

   git add README.md

And commit that:

   git commit --message="D- Fixing a bug sent to robot"

We now have: git-history-d.png

Relative History

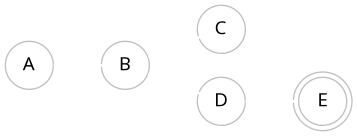

Edit, add, and commit again to make E: git-history-e.png

Notice the history when you type:

     git log

Compare that to:

     git log --all

Advanced Git

Start with a Clean World

   $ git init
   Initialized empty Git repository in /home/howard/Work/robotics/experiment/.git/

Create Content

      $ echo 'test content' | git hash-object -w --stdin
     297632f498c27317f9ef21aea16d20ab88fb2d3e

There it is!

     $ tree objects
     objects
     ├── 29
     │   └── 7632f498c27317f9ef21aea16d20ab88fb2d3e
     ├── info
     └── pack

Notice the first two letters are the directory, and the rest of the 40 character checksum is the file.

Retrieve Content

Using the hash, get the content back:

   git cat-file -p 297632f498c27317f9ef21aea16d20ab88fb2d3e

Version some Files

Create and store a file:

   echo 'version 1' > test.txt
   git hash-object -w test.txt

Which returns the hash: 83baae61804e65cc73a7201a7252750c76066a30

Do it again:

   echo 'version 2' > test.txt
   git hash-object -w test.txt

Which return a new hash: 1f7a7a472abf3dd9643fd615f6da379c4acb3e3a

Revert your code:

   git cat-file -p 83baae61804e65cc73a7201a7252750c76066a30 > test.txt

But that just stores the blob … doesn’t even have the file’s name!

Date: 2017 Oct 05

Created: 2020-12-23 Wed 10:15
